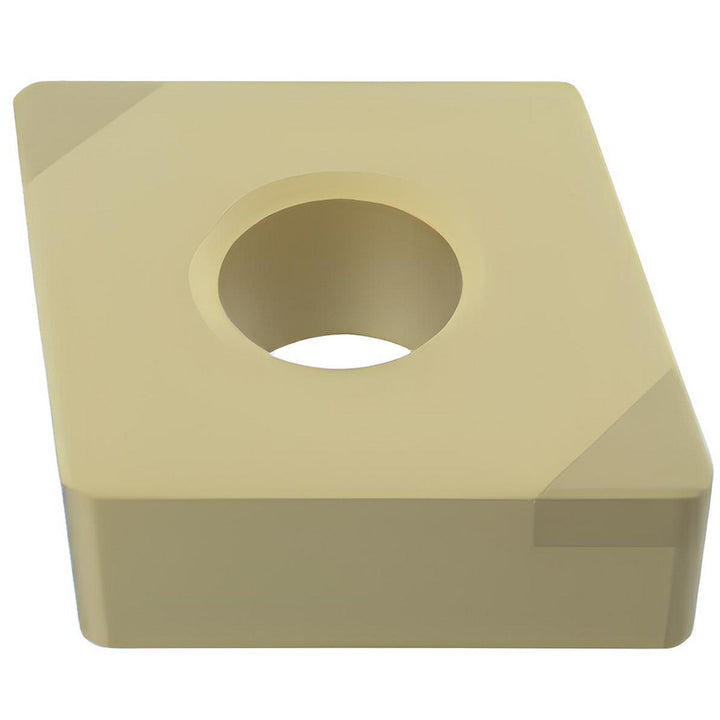

CNGA120408S-02020-L1-B PCBN Insert, Grade CH3515, TiAlN - Seco 03185990

Seco

CNGA120408S-02020-L1-B PCBN Insert, Grade CH3515, TiAlN - Seco 03185990

MFR# 03185990ISO/ANSI# CNGA120408Series CNGA-Flat Top

$101.24
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeCH3515
MaterialPCBN
CoatingTiAlN

Description

The Seco 03185990 is a CNGA120408S-02020-L1-B pcbn indexable insert, grade CH3515, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishTiAlN
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNGA432S-00820-L1-B
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408S-02020-L1-B
Iso insert codeCNGA120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03185990
Manufacturer gradeCH3515
Material gradeK10; K20; K30; H30; H40
Maximum depth of cut0.0400
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0940
Tolerance codeG
Width in1/2
Wiper edgeNo
