Seco

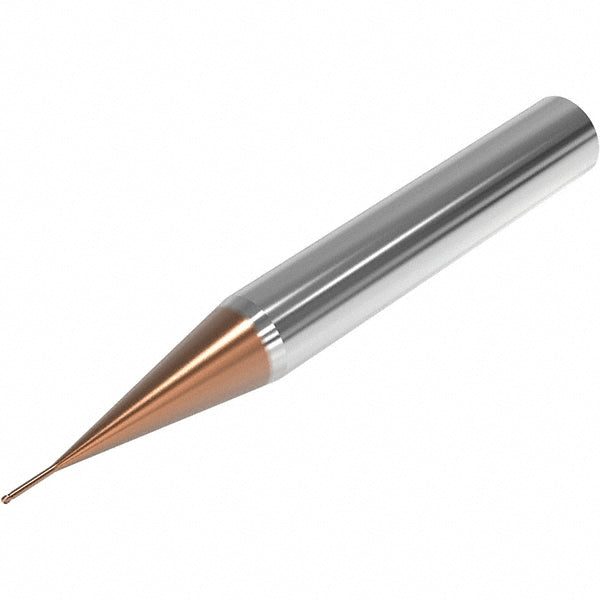

0.0591" 2-Flute Solid Carbide Ball End Mill, HXT - Seco 03205013
MFR# 03205013Cat# JMB112015G3BZ2.0-HXTSeries JMB112
$132.13
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingHXT
Description
The Seco 03205013 is a 0.0591 2-flute Solid Carbide (Micrograin) ball end mill with a HXT finish for longer tool life. Suited for hard material. Series JMB112.
Specifications
ChipbreakerNo
Coating finishHXT
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle28
Helix styleMedium
Length of cut (mm)1.50mm
Length typeExtended
Manufacturers catalog numberJMB112015G3BZ2.0-HXT
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter0.0591
Mill diameter tolerance+0.00/-0.01 mm
Neck diameter (mm)1.45
Neck length in8-1/2
Nose radius (mm)0.75
Number of flutes2
Overall length (mm)50.00mm
Primary workpiece materialHard Material
Reach length (mm)10.00
Shank diameter (mm)6.00mm
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
