Seco

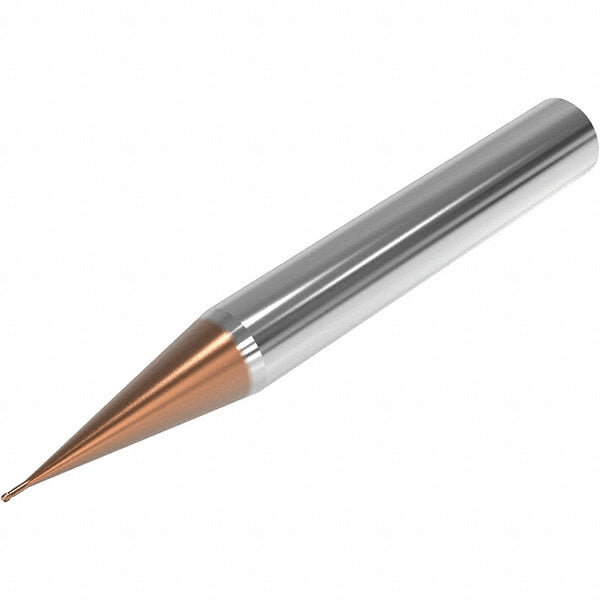

0.0787" 2-Flute Solid Carbide Ball End Mill, HXT - Seco 03205025
MFR# 03205025Cat# JMB112020G2BZ2.0-HXTSeries JMB112
$101.08List $125.28
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingHXT
Description
The Seco 03205025 is a 0.0787 2-flute Solid Carbide (Micrograin) ball end mill with a HXT finish for longer tool life. Suited for hard material. Series JMB112.
Specifications
ChipbreakerNo
Coating finishHXT
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle28
Helix styleMedium
Length of cut (mm)2.00mm
Length typeExtended
Manufacturers catalog numberJMB112020G2BZ2.0-HXT
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter0.0787
Mill diameter tolerance+0.00/-0.01 mm
Neck diameter (mm)1.94
Neck length in4
Nose radius (mm)1.00
Number of flutes2
Overall length (mm)50.00mm
Primary workpiece materialHard Material
Reach length (mm)6.00
Shank diameter (mm)6.00mm
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
