Seco

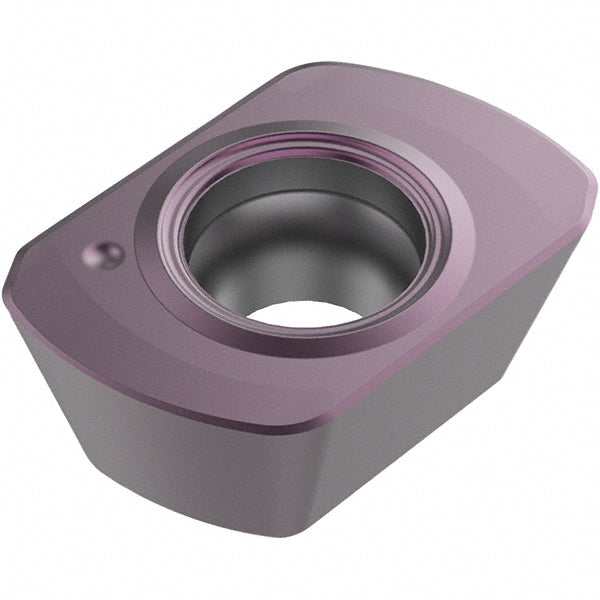

LPKW09T420TR-D15 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 03212677
MFR# 03212677ISO/ANSI# LPKW09T420TR-D15Cat# LPKW09T420TR-D15Series LPKW-09
$19.20List $24.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 03212677 is a LPKW09T420TR-D15 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeLPKW09T420TR-D15
Chip breakerD15
Coating finishTiSiN
Coating processPVD
Convex radius0.3839
Corner radius0.0787
Cutter series compatibilityR217.21-LP09; R220.21-LP09
Cutting edge effective length0.5512
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size09
Insert size code09T420
Insert styleLPKW
Iso codeLPKW09T420TR-D15
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberLPKW09T420TR-D15
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.0700
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialSteel; Hard Material
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3740
