Seco

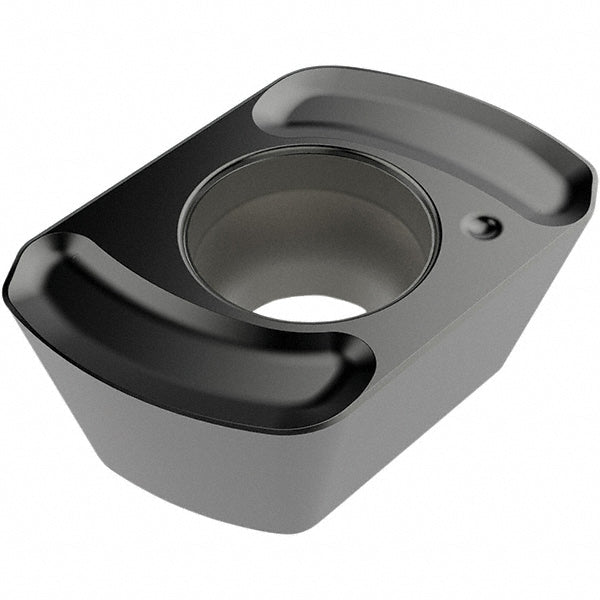

LPKT09T420TR-M13 Solid Carbide Insert, Grade MS2500, TiCN - Seco 03212680
MFR# 03212680ISO/ANSI# LPKT09T420TR-M13Cat# LPKT09T420TR-M13Series LPKT-09
$20.71List $26.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMS2500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03212680 is a LPKT09T420TR-M13 solid carbide indexable insert, grade MS2500, TiCN coated. Suited for superalloys & titanium.
Specifications
Ansi codeLPKT09T420TR-M13
Chip breakerM13
Coating finishTiCN
Coating processCVD
Convex radius0.3839
Corner radius0.0787
Cutter series compatibilityR217.21-LP09; R220.21-LP09
Cutting edge effective length0.5512
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size09
Insert size code09T420
Insert styleLPKT
Iso codeLPKT09T420TR-M13
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberLPKT09T420TR-M13
Manufacturer gradeMS2500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle10
Relief angle11
Secondary workpiece materialSteel; Stainless Steel
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3740
