Seco

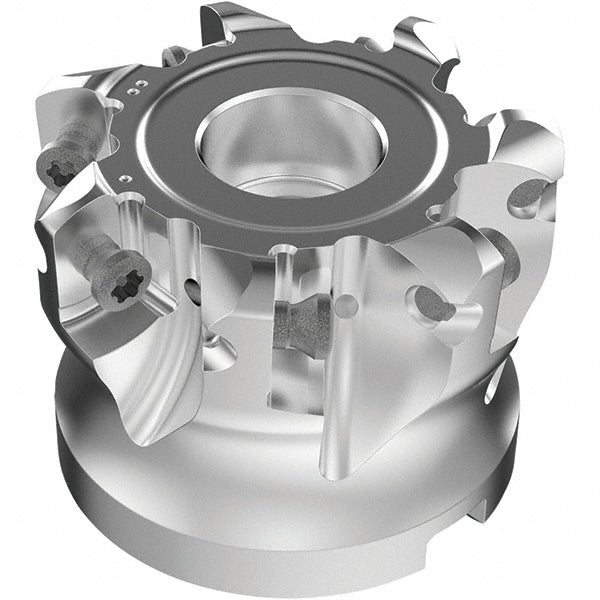

Indexable Milling Cutters - Seco 03212904
MFR# 03212904Series High Feed
$1,026.31
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Seco 03212904 indexable milling cutters. Series High Feed.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeLPKT09
Complete insert compatibilityLPxx09
Coolant throughYes
Cutter styleR220.21-LP09
Cutting diameter2.0000
Cutting directionRight Hand
Insert compatibilityLPKT09
Insert holding methodScrew
Keyway width0.1850
Maximum body diameter2.0000
Maximum cutting diameter2.0000
Maximum depth of cut0.0700
Maximum ramping angle2.20
Maximum rpm24600
Minimum cutting diameter1.4920
Number of cutter inserts7
Number of flutes7
Overall height in1-1/2
Tool applicationFace Milling; Helical Interpolation; Plunging; Ramping; Slotting
