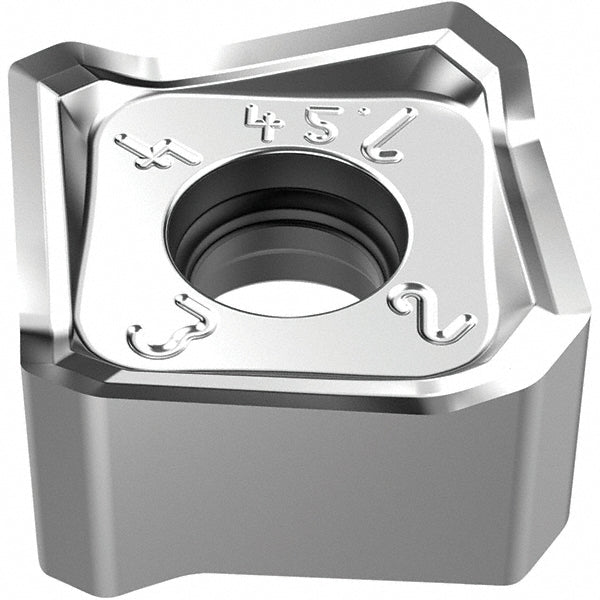

SNHX1407ANR-ME10 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 03213544
MFR# 03213544ISO/ANSI# SNHX1407ANR-ME10Cat# SNHX1407ANR-ME10Series SNHX-14
$44.99List $56.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 03213544 is a SNHX1407ANR-ME10 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeSNHX1407ANR-ME10
Chip breakerME10
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR220.56-14
Cutting edge effective length0.4016
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code1407
Insert styleSNHX
Iso codeSNHX1407ANR-ME10
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSNHX1407ANR-ME10
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.4016
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertDouble
StandardsISO
Thickness0.2594
Thickness range0.2500 to 0.3500
Width0.5512
