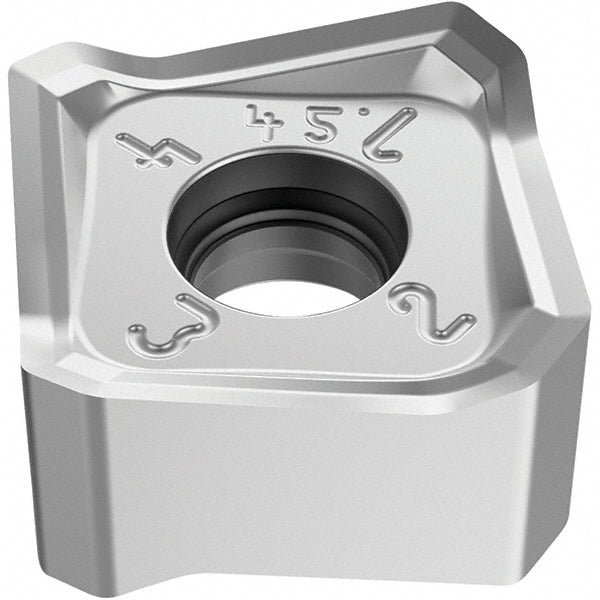

SNHX1407ANR-ME10 Solid Carbide Insert, Grade H25 - Seco 03213545
MFR# 03213545ISO/ANSI# SNHX1407ANR-ME10Cat# SNHX1407ANR-ME10Series SNHX-14
$32.08List $41.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeH25
MaterialSolid Carbide
Description
The Seco 03213545 is a SNHX1407ANR-ME10 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeSNHX1407ANR-ME10
Chip breakerME10
Coating processUncoated
Corner radius0.0394
Cutter series compatibilityR220.56-14
Cutting edge effective length0.4016
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code1407
Insert styleSNHX
Iso codeSNHX1407ANR-ME10
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSNHX1407ANR-ME10
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.4016
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialSuperalloys & Titanium
ShapeSquare
Single or double sided insertDouble
StandardsISO
Thickness0.2594
Thickness range0.2500 to 0.3500
Width0.5512
