Seco

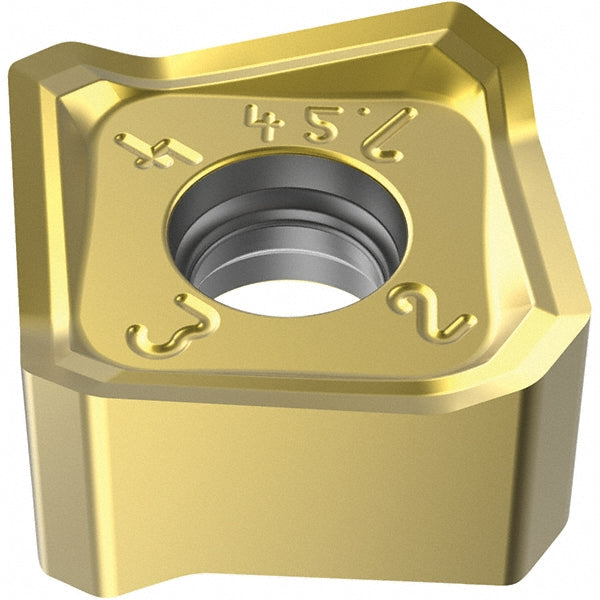

SNHX1407ANR-ME10 Solid Carbide Insert, Grade F40M, TiAlN - Seco 03213547
MFR# 03213547ISO/ANSI# SNHX1407ANR-ME10Cat# SNHX1407ANR-ME10Series SNHX-14
$35.29List $45.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 03213547 is a SNHX1407ANR-ME10 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSNHX1407ANR-ME10
Chip breakerME10
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR220.56-14
Cutting edge effective length0.4016
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code1407
Insert styleSNHX
Iso codeSNHX1407ANR-ME10
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSNHX1407ANR-ME10
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.4016
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertDouble
StandardsISO
Thickness0.2594
Thickness range0.2500 to 0.3500
Width0.5512
