Seco

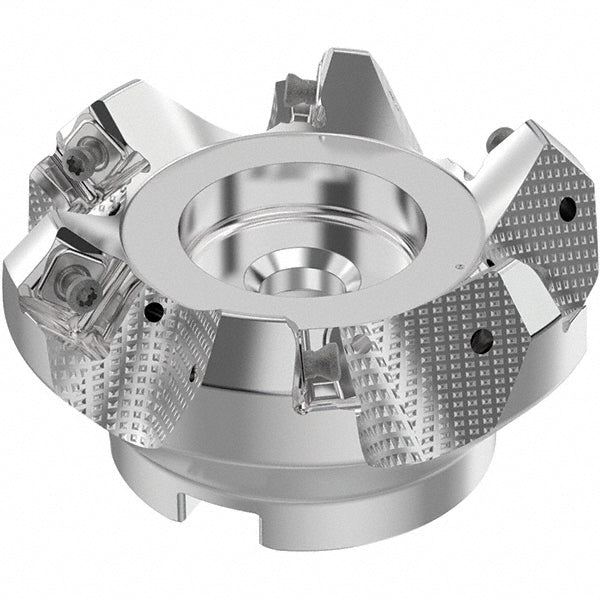

Indexable Milling Cutters - Seco 03213638
MFR# 03213638Series R220.54
$1,250.41List $1,328.40
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Seco 03213638 indexable milling cutters. Series R220.54.
Specifications
Arbor hole diameter in1
Compatible insert size codeSN
Complete insert compatibilitySN..14..ANTR
Coolant throughYes
Cutter styleR220.54
Cutting directionRight Hand
Hub diameter2.4410
Insert holding methodScrew
Keyway width0.3820
Maximum body diameter3.5830
Maximum cutting diameter3.7400
Maximum depth of cut0.2360
Maximum rpm6700
Minimum cutting diameter3.1500
Number of cutter inserts6
Number of flutes6
Pitch typeNormal
RakeNegative
Rake angle-6
Toolholder materialSteel
Tool applicationFacing
