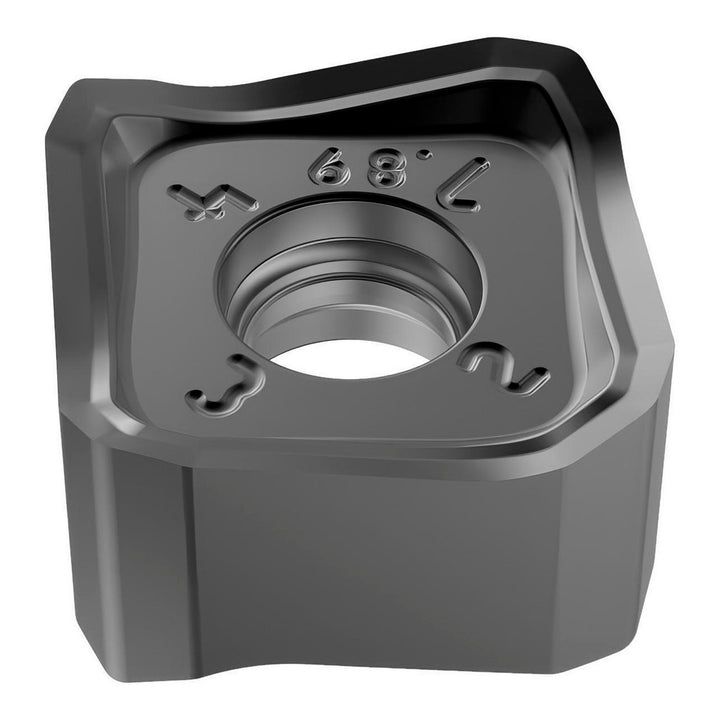

SNMX1407ZNTR-M10 Solid Carbide Insert, Grade MS2500, TiCN - Seco 03241866
MFR# 03241866ISO/ANSI# SNMX1407ZNTR-M10Cat# SNMX1407ZNTR-M10Series SNMX-14
$28.71List $36.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMS2500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03241866 is a SNMX1407ZNTR-M10 solid carbide indexable insert, grade MS2500, TiCN coated. Suited for superalloys & titanium.
Specifications
Ansi codeSNMX1407ZNTR-M10
Chip breakerM10
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR220.54-14
Cutting edge effective length0.4213
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code1407
Insert styleSNMX
Iso codeSNMX1407ZNTR-M10
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSNMX1407ZNTR-M10
Manufacturer gradeMS2500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.4213
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle15
Relief angle0.00
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertDouble
StandardsISO
Thickness0.2594
Thickness range0.2500 to 0.3500
Width0.5512
