Seco

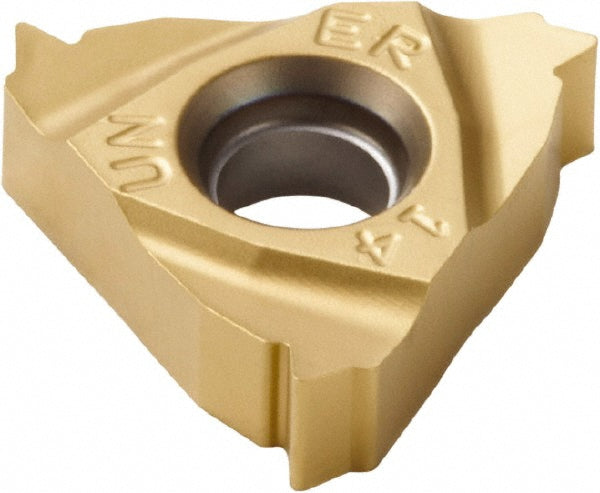

3/8" IC Solid Carbide Insert, Grade TTP2050, Coated - Seco 03245444
MFR# 03245444Series Snap Tap
$35.36List $45.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeTTP2050
MaterialSolid Carbide
CoatingCoated
Description
The Seco 03245444 is a solid carbide indexable insert, grade TTP2050, Coated coated. Suited for universal.
Specifications
ChipbreakerA
Coating finishCoated
Coating processPVD
Corner radius0.0170
Cutting edge to theoretical edge length0.6500
Face of insert to tip centerline0.0370
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16ER
Manufacturer gradeTTP2050
Material gradeMicrograin
Number of teeth per side3
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch8
Thread standardUN
Thread typeExternal
