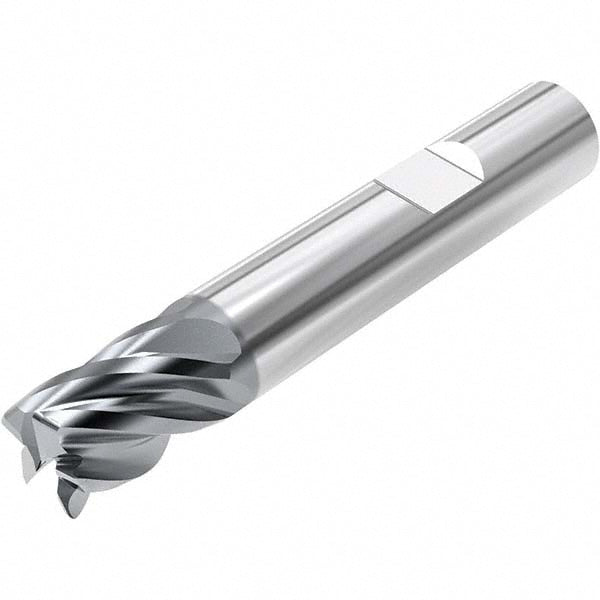

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 03257893

Seco

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 03257893

MFR# 03257893Series STR540

$102.74List $131.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

The Seco 03257893 is a 1/2 5-flute Solid Carbide (Fine Grain) corner radius end mill with a AlCrN finish for longer tool life. 1 length of cut, 3 overall length. Series STR540.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1
Length typeShort
Material gradeFine Grain
Mill diameter in1/2
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes5
Overall length in3
Overall length tolerance+0.0600/-0.0600 in
PitchNormal
Shank diameter in1/2
Shank diameter tolerance-0.0001 - -0.0004 in
Shank typeWeldon Flat
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
