3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 03257946

Seco

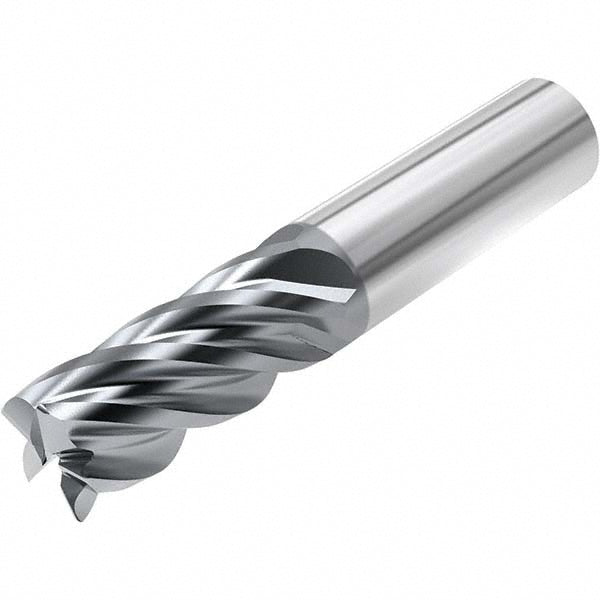

3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Seco 03257946

MFR# 03257946Series STR540

$349.08List $401.03 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

The Seco 03257946 is a 3/4 5-flute Solid Carbide (Fine Grain) corner radius end mill with a AlCrN finish for longer tool life. 2-1/4 length of cut, 5 overall length. Series STR540.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCrN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in2-1/4
Length typeLong
Material gradeFine Grain
Mill diameter in3/4
Number of flutes5
Overall length in5
PitchNormal
Shank diameter in3/4
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
