Seco

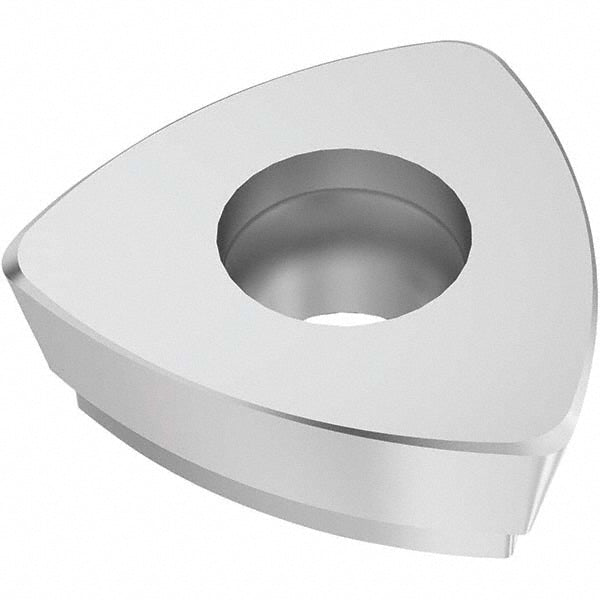

218.19-125T-T3-MD10 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272673
MFR# 03272673ISO/ANSI# 218.19-125T-T3-MD10Cat# 218.19-125T-T3-MD10Series 218.19-125
$29.13List $37.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272673 is a 218.19-125T-T3-MD10 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi code218.19-125T-T3-MD10
Chip breakerMD10
Coating finishTiCN
Coating processCVD
Convex radius0.4921
Corner radius in1/32
Cutter series compatibilityR217.21; R220.21-R125
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree60
Inscribed circle0.3504
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size125
Insert size code125T-T3
Insert style218.19
Iso code218.19-125T-T3-MD10
Length0.3504
Length range0.3200 to 0.4000
Manufacturers catalog number218.19-125T-T3-MD10
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle12
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3504
