Seco

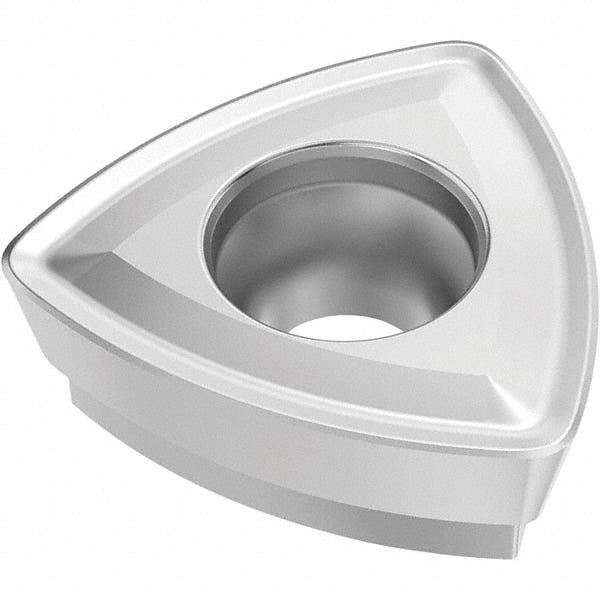

218.19-160T-04-M11 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272676
MFR# 03272676ISO/ANSI# 218.19-160T-04-M11Cat# 218.19-160T-04-M11Series 218.19-160
$39.59List $49.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272676 is a 218.19-160T-04-M11 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi code218.19-160T-04-M11
Chip breakerM11
Coating finishTiCN
Coating processCVD
Convex radius0.6299
Corner radius in3/64
Cutter series compatibilityR217.21; R220.21-R160
Cutting edge styleT-Land
Hole diameter0.1575
Included angle degree60
Inscribed circle0.4402
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size160
Insert size code160T-04
Insert style218.19
Iso code218.19-160T-04-M11
Length0.4402
Length range0.4000 to 0.4500
Manufacturers catalog number218.19-160T-04-M11
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle12.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4402
