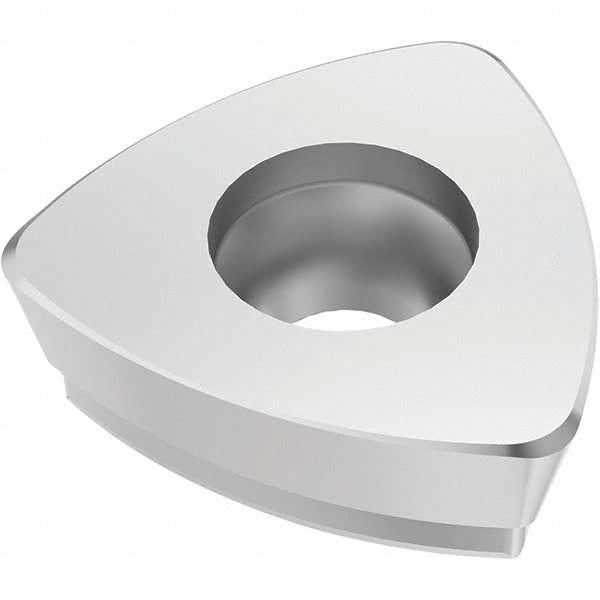

218.19-160T-04-MD11 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03272682

Seco

218.19-160T-04-MD11 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03272682

MFR# 03272682ISO/ANSI# 218.19-160T-04-MD11Cat# 218.19-160T-04-MD11Series 218.19-160

$32.67List $41.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeMP1501
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 03272682 is a 218.19-160T-04-MD11 solid carbide indexable insert, grade MP1501, TiCN coated. Suited for steel.

Specifications

Ansi code218.19-160T-04-MD11
Chip breakerMD11
Coating finishTiCN
Coating processCVD
Convex radius0.6299
Corner radius in3/64
Cutter series compatibilityR217.21; R220.21-R160
Cutting edge styleT-Land
Hole diameter0.1575
Included angle degree60
Inscribed circle0.4402
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size160
Insert size code160T-04
Insert style218.19
Iso code218.19-160T-04-MD11
Length0.4402
Length range0.4000 to 0.4500
Manufacturers catalog number218.19-160T-04-MD11
Manufacturer gradeMP1501
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle12
Secondary workpiece materialCast Iron; Hard Material
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4402
