Seco

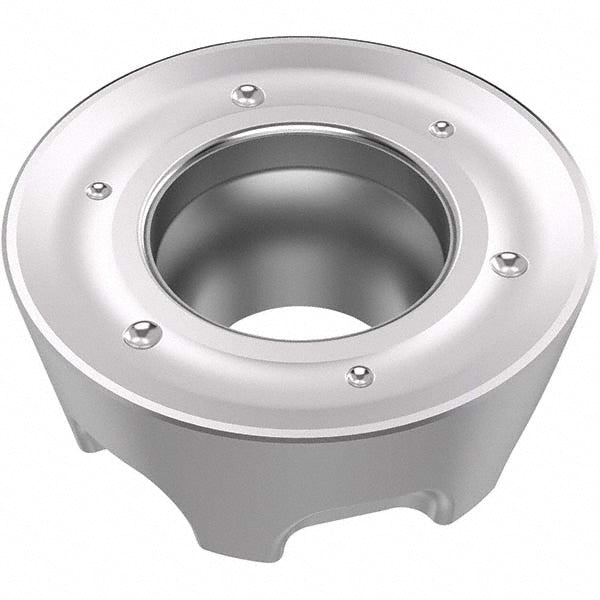

RPKT1204M0T-6-M15 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272716
MFR# 03272716ISO/ANSI# RPKT1204M0T-6-M15Cat# RPKT1204M0T-6-M15Series RPKT-12
$16.92List $21.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272716 is a RPKT1204M0T-6-M15 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeRPKT1204M0T-6-M15
Chip breakerM15
Coating finishTiCN
Coating processCVD
Corner radius0.2362
Cutter series compatibility335.18
Cutting edge effective length0.2362
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPKT
Iso codeRPKT1204M0T-6-M15
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRPKT1204M0T-6-M15
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
