Seco

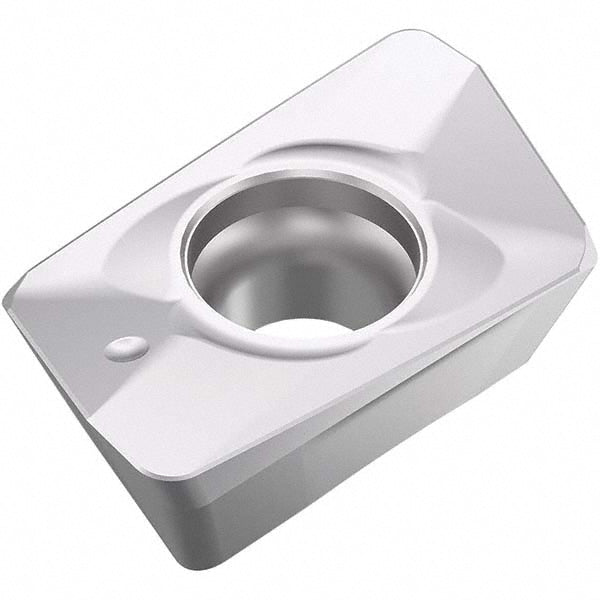

XOMX120408TR-D14 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272828
MFR# 03272828ISO/ANSI# XOMX120408TR-D14Cat# XOMX120408TR-D14Series XOMX-12
$25.19List $32.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272828 is a XOMX120408TR-D14 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeXOMX120408TR-D14
Chip breakerD14
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4567
Cutting edge styleT-Land
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOMX
Iso codeXOMX120408TR-D14
Length0.4567
Length range0.4500 to 0.5000
Manufacturers catalog numberXOMX120408TR-D14
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle1
Relief angle15
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1996
Thickness range0.1850 to 0.2000
Width0.3228
