Seco

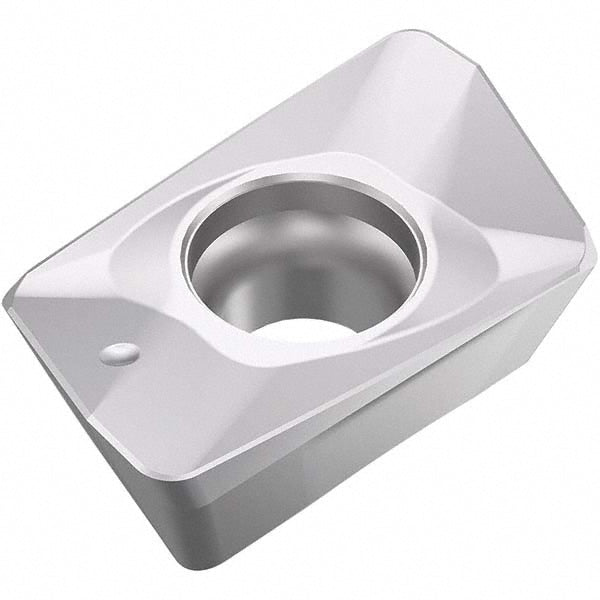

XOMX120408TR-M12 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03272831
MFR# 03272831ISO/ANSI# XOMX120408TR-M12Cat# XOMX120408TR-M12Series XOMX-12
$25.19List $32.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP1501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272831 is a XOMX120408TR-M12 solid carbide indexable insert, grade MP1501, TiCN coated. Suited for steel.
Specifications
Ansi codeXOMX120408TR-M12
Chip breakerM12
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.4567
Cutting edge styleT-Land
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOMX
Iso codeXOMX120408TR-M12
Length0.4567
Length range0.4500 to 0.5000
Manufacturers catalog numberXOMX120408TR-M12
Manufacturer gradeMP1501
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle10.4
Relief angle15
Secondary workpiece materialCast Iron; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1996
Thickness range0.1850 to 0.2000
Width0.3228
