Seco

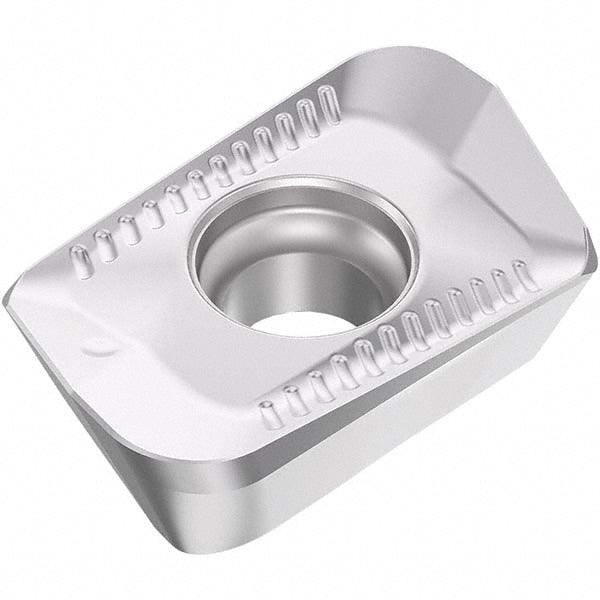

XOMX10T316TR-ME07 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272848
MFR# 03272848ISO/ANSI# XOMX10T316TR-ME07Cat# XOMX10T316TR-ME07Series XOMX-10
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272848 is a XOMX10T316TR-ME07 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeXOMX10T316TR-ME07
Chip breakerME07
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutter series compatibilityR217.69-10; R220.69-10
Cutting edge effective length0.3661
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree90
Inscribed circle0.2717
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T316
Insert styleXOMX
Iso codeXOMX10T316TR-ME07
Length0.3661
Length range0.3200 to 0.4000
Manufacturers catalog numberXOMX10T316TR-ME07
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3661
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle20.4
Relief angle15
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1508
Thickness range0.1500 to 0.1750
Width0.2717
