Seco

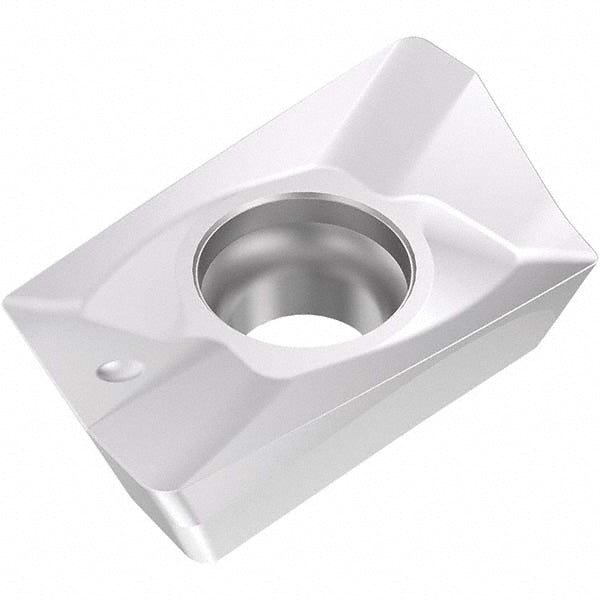

XOMX180608R-M10 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272864
MFR# 03272864ISO/ANSI# XOMX180608R-M10Cat# XOMX180608R-M10Series XOMX-18
$32.84List $42.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272864 is a XOMX180608R-M10 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeXOMX180608R-M10
Chip breakerM10
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleXOMX
Iso codeXOMX180608R-M10
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180608R-M10
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle22.4
Relief angle15
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
