Seco

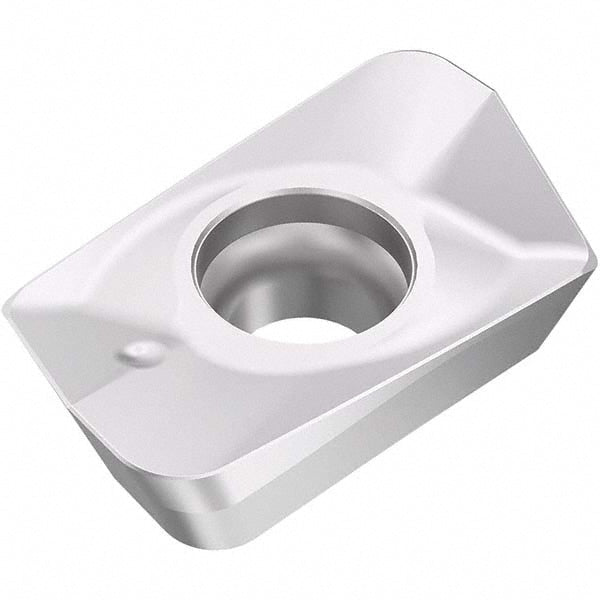

XOMX180620TR-M14 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272868
MFR# 03272868ISO/ANSI# XOMX180620TR-M14Cat# XOMX180620TR-M14Series XOMX-18
$29.72List $38.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272868 is a XOMX180620TR-M14 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeXOMX180620TR-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius0.0787
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180620
Insert styleXOMX
Iso codeXOMX180620TR-M14
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180620TR-M14
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle15
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
