Seco

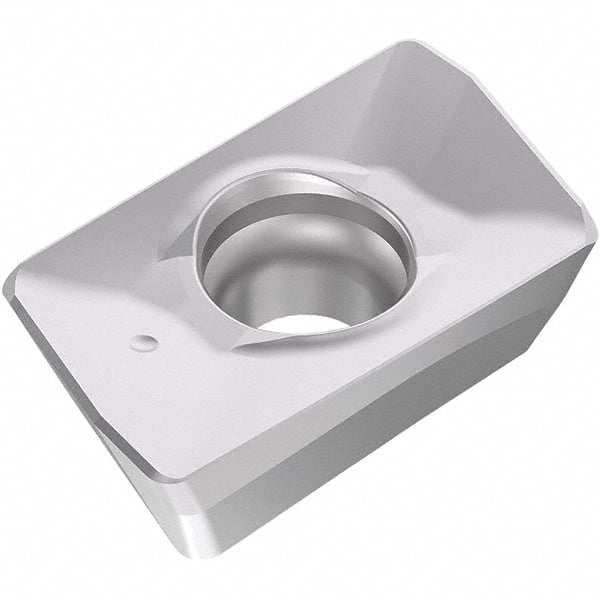

XOMX180608TR-MD15 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03272874
MFR# 03272874ISO/ANSI# XOMX180608TR-MD15Cat# XOMX180608TR-MD15Series XOMX-18
$38.84List $48.94
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP1501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272874 is a XOMX180608TR-MD15 solid carbide indexable insert, grade MP1501, TiCN coated. Suited for steel.
Specifications
Ansi codeXOMX180608TR-MD15
Chip breakerMD15
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleXOMX
Iso codeXOMX180608TR-MD15
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180608TR-MD15
Manufacturer gradeMP1501
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15.9
Relief angle15
Secondary workpiece materialCast Iron; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
