Seco

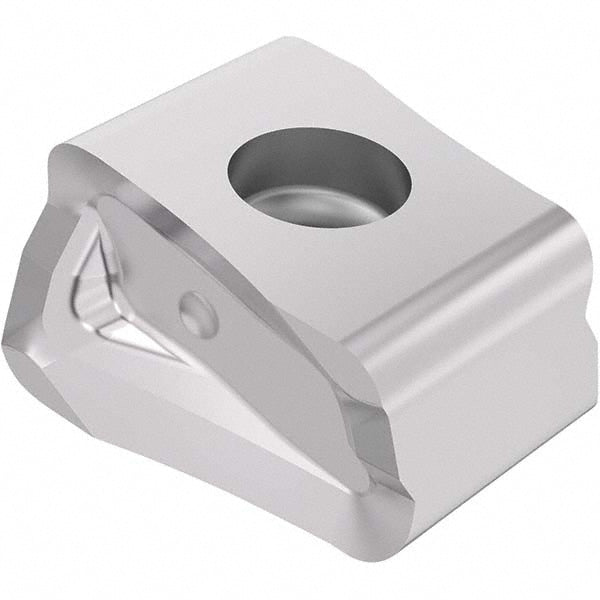

LOEX080404TR-M08 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272884
MFR# 03272884ISO/ANSI# LOEX080404TR-M08Cat# LOEX080404TR-M08Series LOEX-08
$33.27List $42.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272884 is a LOEX080404TR-M08 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeLOEX080404TR-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityR217.94-08; R220.94-08
Cutting edge effective length0.3268
Cutting edge styleT-Land
Hole diameter0.2028
Included angle degree90
Inscribed circle0.1732
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code080404
Insert styleLOEX
Iso codeLOEX080404TR-M08
Length0.3661
Length range0.3200 to 0.4000
Manufacturers catalog numberLOEX080404TR-M08
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3268
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle33.3
Relief angle0.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.2626
Thickness range0.2500 to 0.3500
Width0.1732
