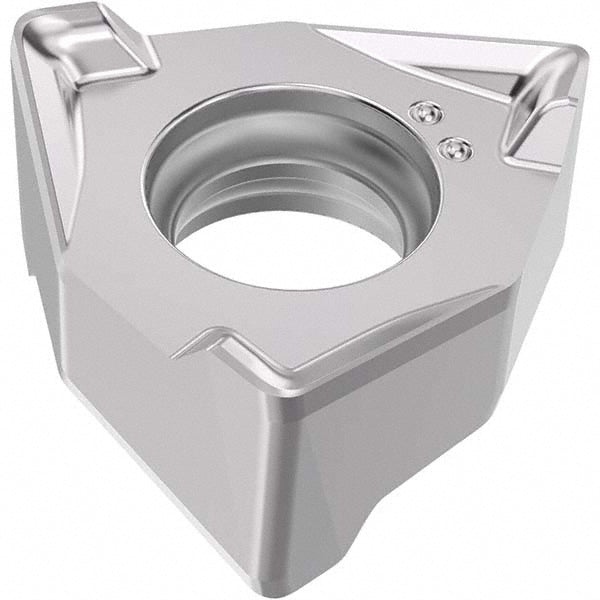

XNEX040304TR-M08 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272902
MFR# 03272902ISO/ANSI# XNEX040304TR-M08Cat# XNEX040304TR-M08Series XNEX-04
$28.14List $36.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/64
ShapeTrigon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272902 is a XNEX040304TR-M08 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeXNEX040304TR-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityR217-96-04; R220.96-04
Cutting edge effective length0.1575
Cutting edge styleT-Land
Hole diameter0.1244
Included angle degree88
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size04
Insert size code040304
Insert styleXNEX
Iso codeXNEX040304TR-M08
Length in5/32
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX040304TR-M08
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle27
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.1295
Thickness range0.1250 to 0.1500
Width0.2638
