Seco

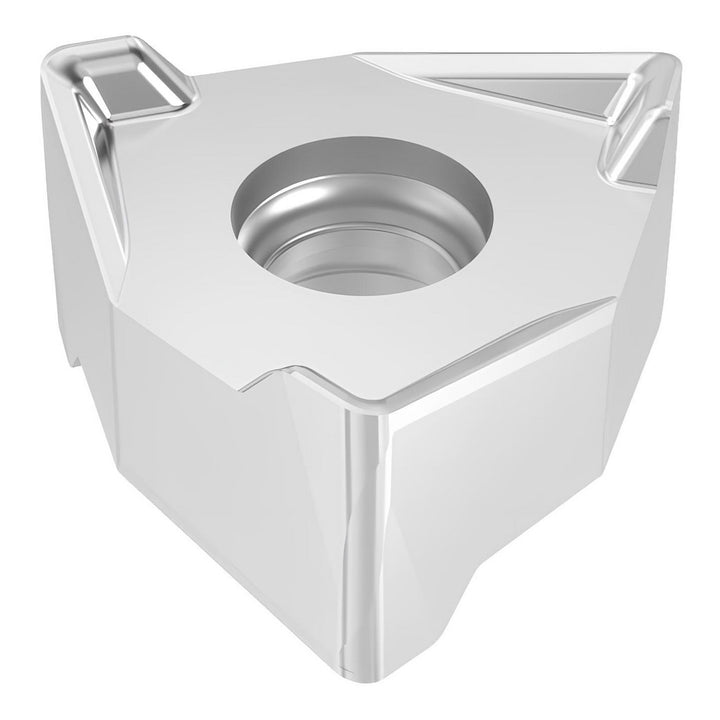

XNEX080608TR-M13 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272909
MFR# 03272909ISO/ANSI# XNEX080608TR-M13Cat# XNEX080608TR-M13Series XNEX-08
$36.63List $46.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272909 is a XNEX080608TR-M13 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeXNEX080608TR-M13
Chip breakerM13
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.96-08; R220.96-08
Cutting edge effective length0.2953
Cutting edge styleT-Land
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleXNEX
Iso codeXNEX080608TR-M13
Length in19/64
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080608TR-M13
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle22
Relief angle0.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2539
Thickness range0.2500 to 0.3500
Width0.4913
