Seco

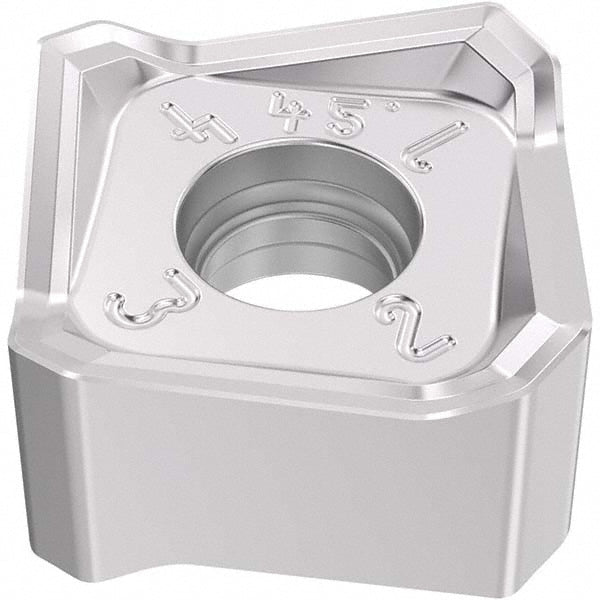

SNMX1407ANTR-M16 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03272927
MFR# 03272927ISO/ANSI# SNMX1407ANTR-M16Cat# SNMX1407ANTR-M16Series SNMX-14
$29.97List $38.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMP1501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272927 is a SNMX1407ANTR-M16 solid carbide indexable insert, grade MP1501, TiCN coated. Suited for steel.
Specifications
Ansi codeSNMX1407ANTR-M16
Chip breakerM16
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR217.54-14; R217.56-14; R220.54-14; R220.56-14
Cutting edge effective length0.4016
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code1407
Insert styleSNMX
Iso codeSNMX1407ANTR-M16
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSNMX1407ANTR-M16
Manufacturer gradeMP1501
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.4016
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0.00
Secondary workpiece materialCast Iron; Hard Material
ShapeSquare
Single or double sided insertDouble
StandardsISO
Thickness0.2594
Thickness range0.2500 to 0.3500
Width0.5512
