Seco

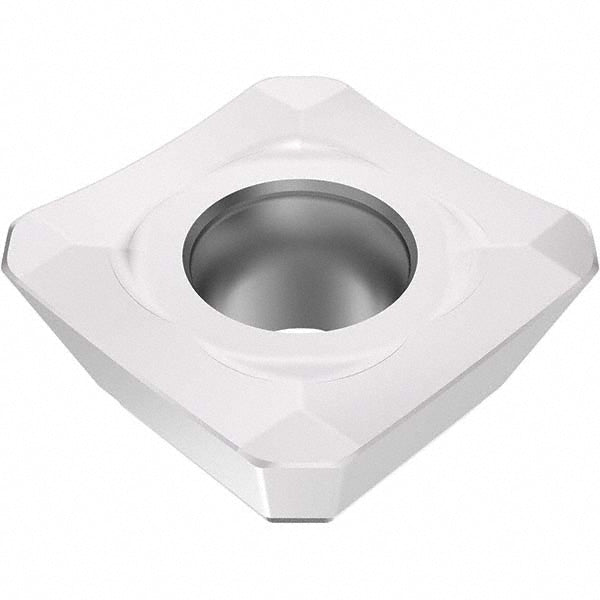

SEMX09T3AFTN-M08 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272960
MFR# 03272960ISO/ANSI# SEMX09T3AFTN-M08Cat# SEMX09T3AFTN-M08Series SEMX-09
$16.59List $21.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272960 is a SEMX09T3AFTN-M08 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeSEMX09T3AFTN-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius0.0118
Cutter series compatibilityR217.53; R220.53-09
Cutting edge effective length0.3748
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEMX
Iso codeSEMX09T3AFTN-M08
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSEMX09T3AFTN-M08
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle20
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
