Seco

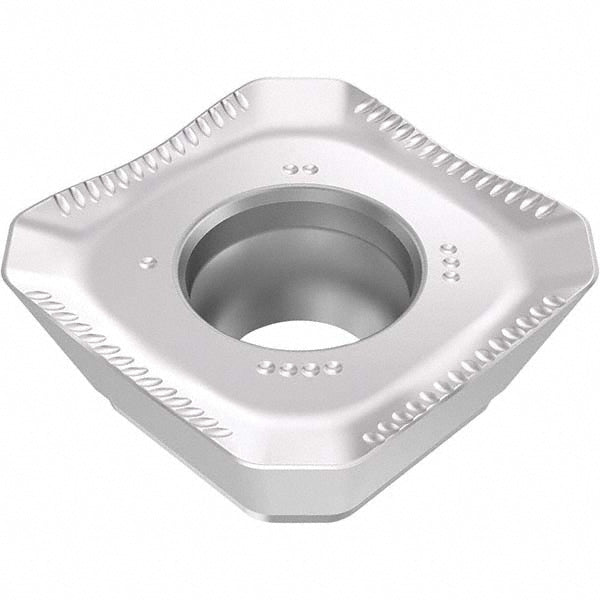

SEEX1204AFTN-M14 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272964
MFR# 03272964ISO/ANSI# SEEX1204AFTN-M14Cat# SEEX1204AFTN-M14Series SEEX-12
$29.30List $37.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272964 is a SEEX1204AFTN-M14 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeSEEX1204AFTN-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius0.0441
Cutter series compatibilityR220.53-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEEX
Iso codeSEEX1204AFTN-M14
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEEX1204AFTN-M14
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Rake angle5
Relief angle20
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
