Seco

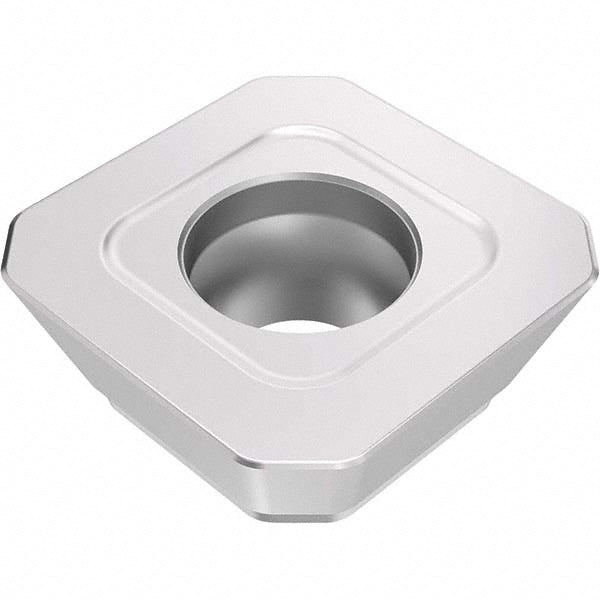

SEMX1204AFTN-MD19 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03272973
MFR# 03272973ISO/ANSI# SEMX1204AFTN-MD19Cat# SEMX1204AFTN-MD19Series SEMX-12
$22.91List $29.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeMP1501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272973 is a SEMX1204AFTN-MD19 solid carbide indexable insert, grade MP1501, TiCN coated. Suited for steel.
Specifications
Ansi codeSEMX1204AFTN-MD19
Chip breakerMD19
Coating finishTiCN
Coating processCVD
Corner radius0.0441
Cutter series compatibilityR217.53-12; R220.53-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEMX
Iso codeSEMX1204AFTN-MD19
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEMX1204AFTN-MD19
Manufacturer gradeMP1501
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle20
Secondary workpiece materialCast Iron; Hard Material
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
