Seco

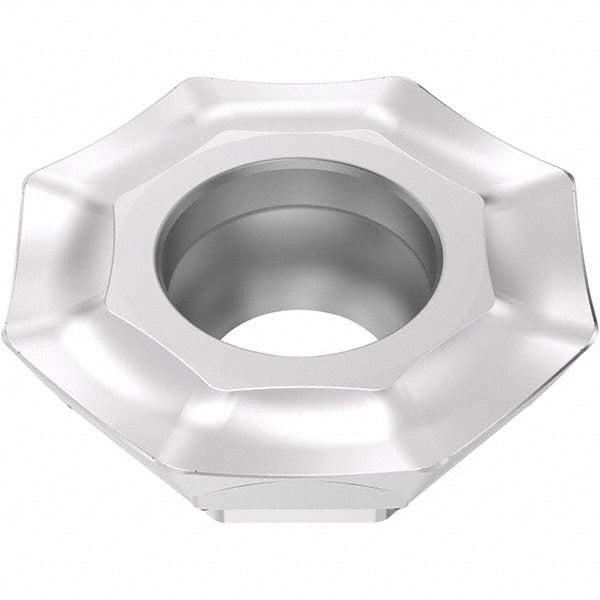

OFEX05T305TN-M08 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272983
MFR# 03272983ISO/ANSI# OFEX05T305TN-M08Cat# OFEX05T305TN-M08Series OFEX-05
$28.63List $36.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeOctagon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272983 is a OFEX05T305TN-M08 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeOFEX05T305TN-M08
Chip breakerM08
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityR217.43-05; R220.43-05
Cutting edge effective length0.2075
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code05T305
Insert styleOFEX
Iso codeOFEX05T305TN-M08
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberOFEX05T305TN-M08
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1929
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle26
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1484
Thickness range0.1250 to 0.1500
Width in1/2
