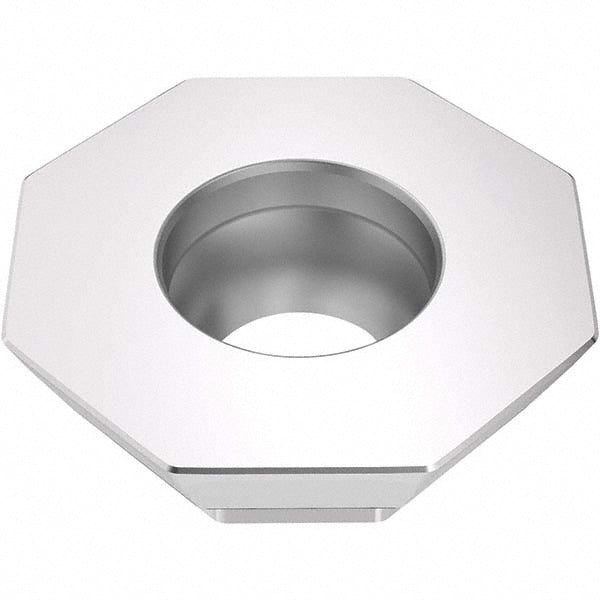

OFEX05T305TN-D09 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03272987

Seco

OFEX05T305TN-D09 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03272987

MFR# 03272987ISO/ANSI# OFEX05T305TN-D09Cat# OFEX05T305TN-D09Series OFEX-05

$28.63List $36.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeOctagon
GradeMP1501
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 03272987 is a OFEX05T305TN-D09 solid carbide indexable insert, grade MP1501, TiCN coated. Suited for steel.

Specifications

Ansi codeOFEX05T305TN-D09
Chip breakerD09
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityR217.43-05; R220.43-05
Cutting edge effective length0.2079
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code05T305
Insert styleOFEX
Iso codeOFEX05T305TN-D09
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberOFEX05T305TN-D09
Manufacturer gradeMP1501
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.1929
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle26
Secondary workpiece materialCast Iron; Hard Material
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5042
