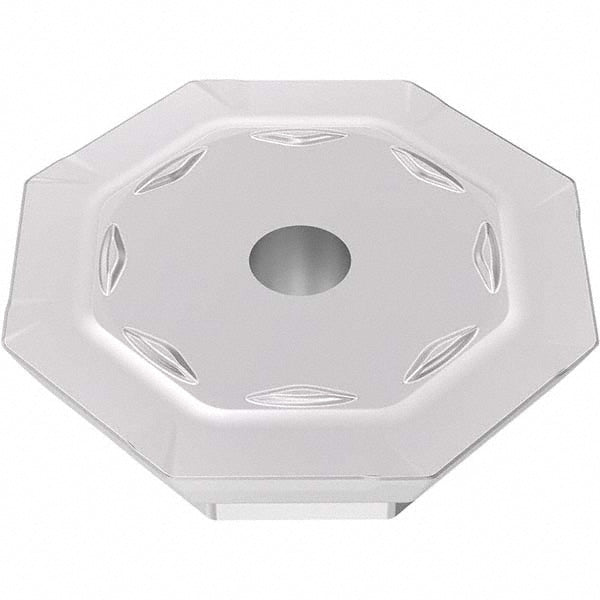

OFMR070405TR-M15 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03272991
MFR# 03272991ISO/ANSI# OFMR070405TR-M15Cat# OFMR070405TR-M15Series OFMR-07
$29.13List $37.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03272991 is a OFMR070405TR-M15 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeOFMR070405TR-M15
Chip breakerM15
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityR220.43-07
Cutting edge effective length0.2047
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.7076
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code070405
Insert styleOFMR
Iso codeOFMR070405TR-M15
Length0.7076
Length range0.7000 to 0.9000
Manufacturers catalog numberOFMR070405TR-M15
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2047
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle26
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeOctagon
Single or double sided insertSingle
StandardsISO
Thickness0.1913
Thickness range0.1850 to 0.2000
Width0.7076
