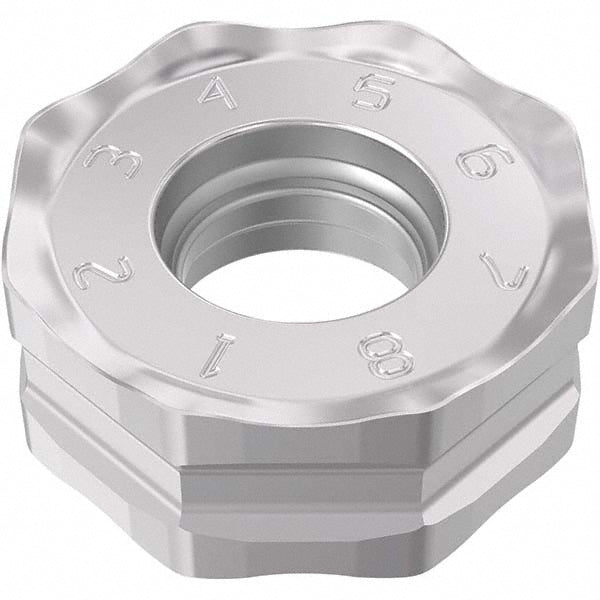

ONMU050410ANTN-M11 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273002
MFR# 03273002ISO/ANSI# ONMU050410ANTN-M11Cat# ONMU050410ANTN-M11Series ONMU-05
$39.59List $49.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03273002 is a ONMU050410ANTN-M11 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeONMU050410ANTN-M11
Chip breakerM11
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR217.48-05; R220.48-05
Cutting edge effective length0.1339
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree135
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code050410
Insert styleONMU
Iso codeONMU050410ANTN-M11
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberONMU050410ANTN-M11
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1339
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.4724
