ONMU090520ANTN-M13 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273009
MFR# 03273009ISO/ANSI# ONMU090520ANTN-M13Cat# ONMU090520ANTN-M13Series ONMU-09
$45.13List $57.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description

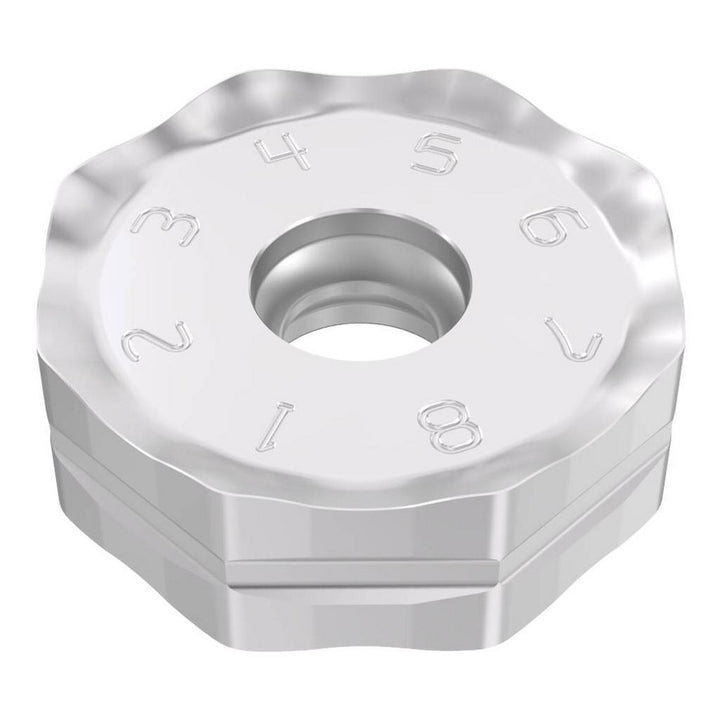

The Seco 03273009 is a ONMU090520ANTN-M13 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeONMU090520ANTN-M13
Chip breakerM13
Coating finishTiCN
Coating processCVD
Corner radius0.0787
Cutter series compatibilityR220.48-09; L220.48-09
Cutting edge effective length0.3031
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree135
Inscribed circle0.8661
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size09
Insert size code090520
Insert styleONMU
Iso codeONMU090520ANTN-M13
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU090520ANTN-M13
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges16
Primary workpiece materialSteel
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness0.2677
Thickness range0.2500 to 0.3500
Width0.8661
