Seco

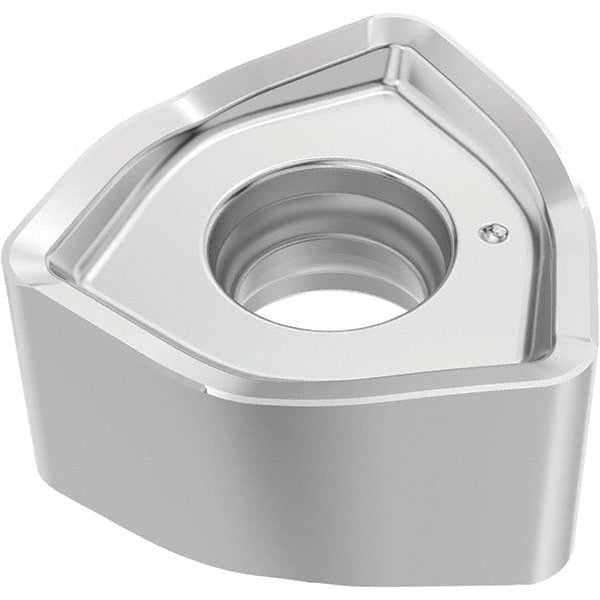

218.21-230TR-06-M15 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273088
MFR# 03273088ISO/ANSI# 218.21-230TR-06-M15Cat# 218.21-230TR-06-M15Series 218.21-230
$39.92List $51.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03273088 is a 218.21-230TR-06-M15 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi code218.21-230TR-06-M15
Chip breakerM15
Coating finishTiCN
Coating processCVD
Convex radius0.3346
Corner radius in1/16
Cutter series compatibilityR217.21-R230; R220.21-R230
Cutting edge styleT-Land
Hole diameter0.1870
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size230
Insert size code230TR-06
Insert style218.21
Iso code218.21-230TR-06-M15
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number218.21-230TR-06-M15
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0710
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness in15/64
Thickness range0.2200 to 0.2350
Width in1/2
