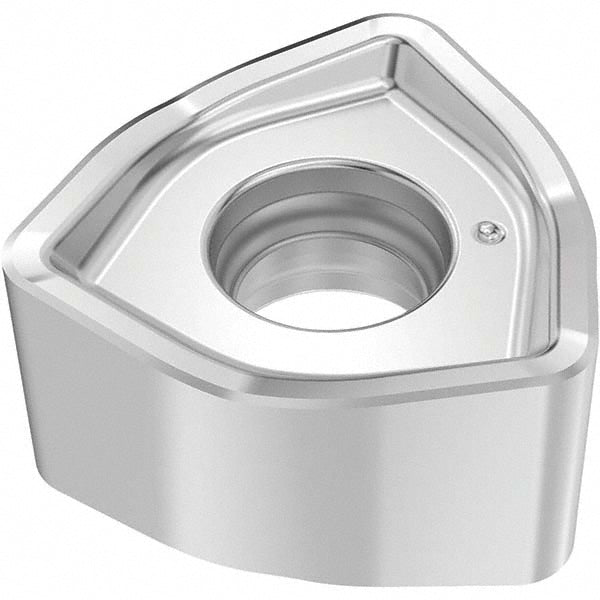

218.21-230TR-06-MD17 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03273090

Seco

218.21-230TR-06-MD17 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03273090

MFR# 03273090ISO/ANSI# 218.21-230TR-06-MD17Cat# 218.21-230TR-06-MD17Series 218.21-230

$39.92List $51.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeMP1501
MaterialSolid Carbide
CoatingTiCN

Description

The Seco 03273090 is a 218.21-230TR-06-MD17 solid carbide indexable insert, grade MP1501, TiCN coated. Suited for steel.

Specifications

Ansi code218.21-230TR-06-MD17
Chip breakerMD17
Coating finishTiCN
Coating processCVD
Convex radius0.3346
Corner radius in1/16
Cutter series compatibilityR217.21-R230; R220.21-R230
Cutting edge styleT-Land
Hole diameter0.1870
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size230
Insert size code230TR-06
Insert style218.21
Iso code218.21-230TR-06-MD17
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number218.21-230TR-06-MD17
Manufacturer gradeMP1501
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.0710
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle7
Relief angle0
Secondary workpiece materialCast Iron; Hard Material
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2370
Thickness range0.2350 to 0.2500
Width in1/2
