Seco

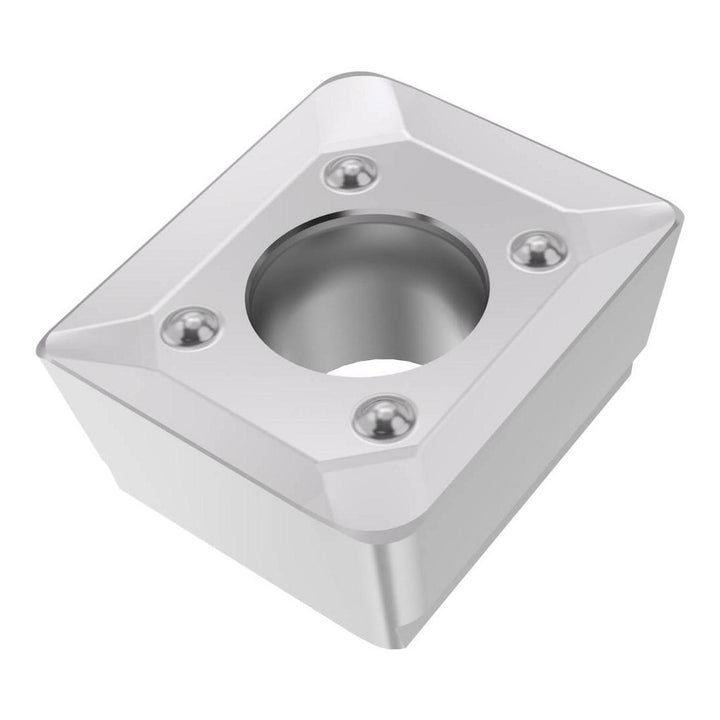

ACET150612TR-M14 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273154
MFR# 03273154ISO/ANSI# ACET150612TR-M14Cat# ACET150612TR-M14Series ACET-15
$35.71List $45.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03273154 is a ACET150612TR-M14 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeACET150612TR-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityR220.69-15H; R217.59-12; R220.59-12; R217.81; R220.81
Cutting edge effective length0.5906
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree86
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150612
Insert styleACET
Iso codeACET150612TR-M14
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberACET150612TR-M14
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.5827
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
