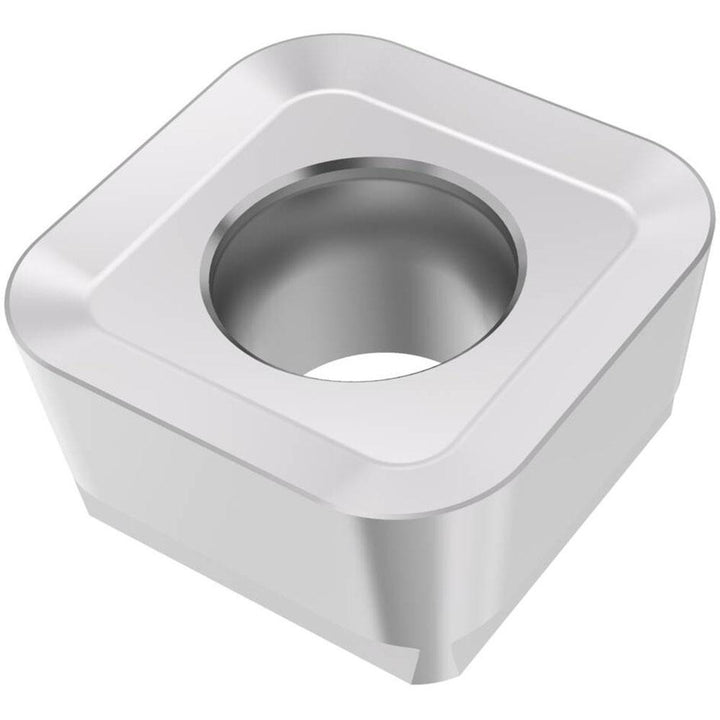

SCET120630T-M14 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273260
MFR# 03273260ISO/ANSI# SCET120630T-M14Cat# SCET120630T-M14Series SCET-12
$36.63List $46.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03273260 is a SCET120630T-M14 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeSCET120630T-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius0.1181
Cutter series compatibilityR220.21-SC12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120630
Insert styleSCET
Iso codeSCET120630T-M14
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSCET120630T-M14
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3819
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
