Seco

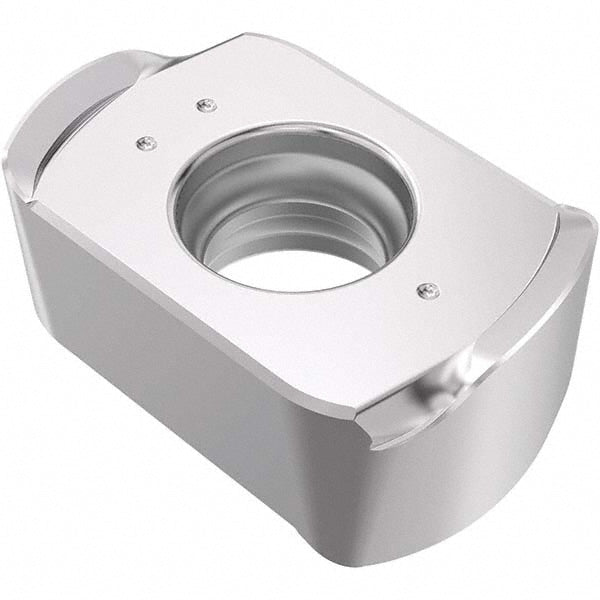

LOHT060310TR-M07 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273340
MFR# 03273340ISO/ANSI# LOHT060310TR-M07Cat# LOHT060310TR-M07Series LOHT-06
$29.13List $37.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRectangle
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03273340 is a LOHT060310TR-M07 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeLOHT060310TR-M07
Chip breakerM07
Coating finishTiCN
Coating processCVD
Convex radius0.2165
Corner radius0.0394
Cutter series compatibilityR217.21-LO06; R220.21-LO06
Cutting edge effective length0.3937
Cutting edge styleT-Land
Hole diameter0.1244
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code060310
Insert styleLOHT
Iso codeLOHT060310TR-M07
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberLOHT060310TR-M07
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness in9/64
Thickness range0.1250 to 0.1500
Width in1/4
