Seco

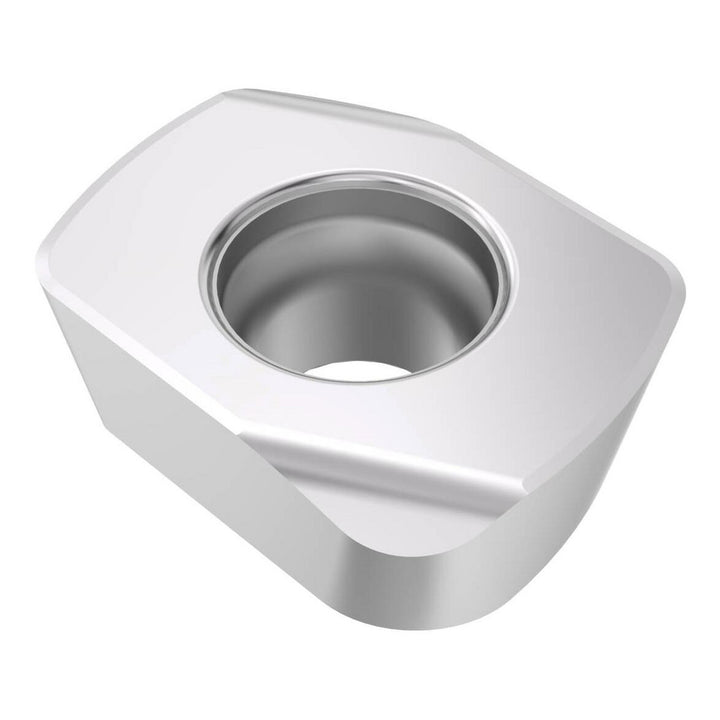

LPHW060310TR-MD07 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273544
MFR# 03273544ISO/ANSI# LPHW060310TR-MD07Cat# LPHW060310TR-MD07Series LPHW-06
$17.61List $22.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRectangle
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03273544 is a LPHW060310TR-MD07 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeLPHW060310TR-MD07
Chip breakerMD07
Coating finishTiCN
Coating processCVD
Convex radius0.3150
Corner radius0.0394
Cutter series compatibilityR217.21-LP06; R220.21-LP06
Cutting edge effective length0.3343
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size06
Insert size code060310
Insert styleLPHW
Iso codeLPHW060310TR-MD07
Length0.3343
Length range0.3200 to 0.4000
Manufacturers catalog numberLPHW060310TR-MD07
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3343
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle11.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/4
