Seco

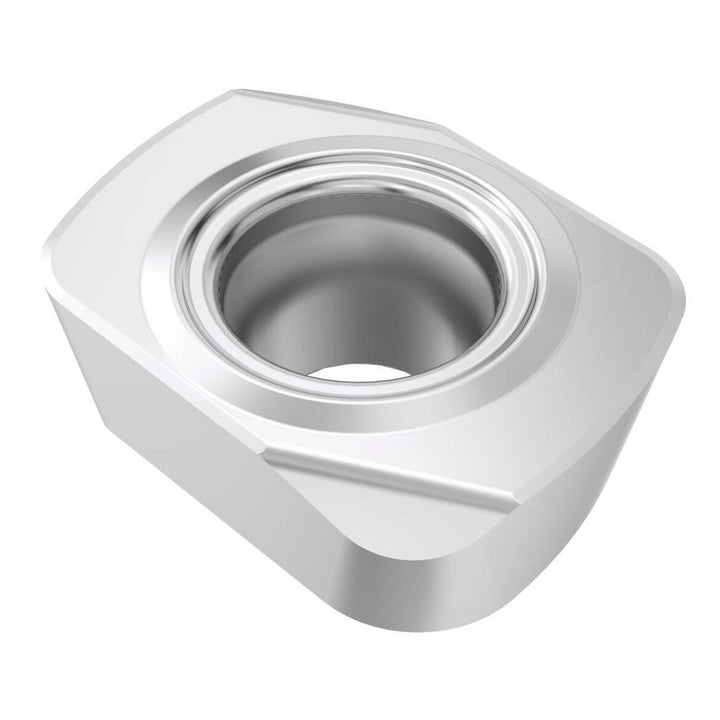

LPKW05T210TR-MD05 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273546
MFR# 03273546ISO/ANSI# LPKW05T210TR-MD05Cat# LPKW05T210TR-MD05Series LPKW-05
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03273546 is a LPKW05T210TR-MD05 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeLPKW05T210TR-MD05
Chip breakerMD05
Coating finishTiCN
Coating processCVD
Convex radius0.2520
Corner radius0.0394
Cutter series compatibilityR217.21-LP05
Cutting edge effective length0.2677
Cutting edge styleT-Land
Hole diameter0.0906
Included angle degree90
Inscribed circle0.1996
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size05
Insert size code05T210
Insert styleLPKW
Iso codeLPKW05T210TR-MD05
Length0.2677
Length range0.0000 to 0.3200
Manufacturers catalog numberLPKW05T210TR-MD05
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2677
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle11.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness0.1000
Thickness range0.1000 to 0.1250
Width0.1996
