Seco

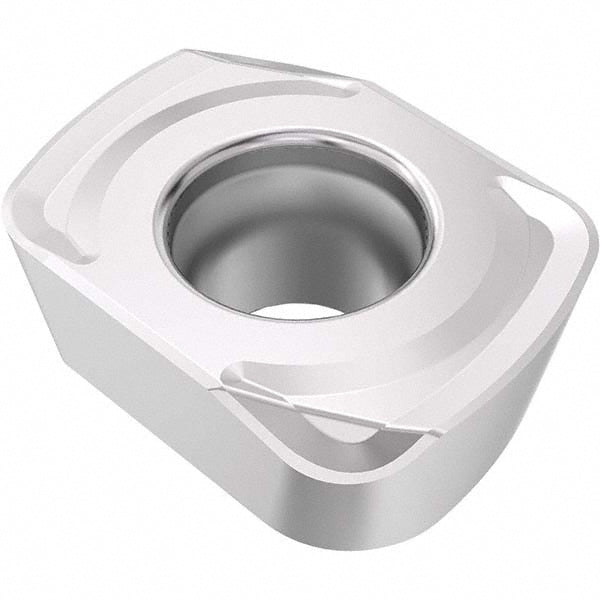

LPKT05T210TR-M05 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03273547
MFR# 03273547ISO/ANSI# LPKT05T210TR-M05Cat# LPKT05T210TR-M05Series LPKT-05
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03273547 is a LPKT05T210TR-M05 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeLPKT05T210TR-M05
Chip breakerM05
Coating finishTiCN
Coating processCVD
Convex radius0.2520
Corner radius0.0394
Cutter series compatibilityR217.21-LP05
Cutting edge effective length0.2677
Cutting edge styleT-Land
Hole diameter0.0906
Included angle degree90
Inscribed circle0.1996
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size05
Insert size code05T210
Insert styleLPKT
Iso codeLPKT05T210TR-M05
Length0.2677
Length range0.0000 to 0.3200
Manufacturers catalog numberLPKT05T210TR-M05
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2677
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle11
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRectangle
Single or double sided insertSingle
StandardsISO
Thickness0.1000
Thickness range0.1000 to 0.1250
Width0.1996
