Seco

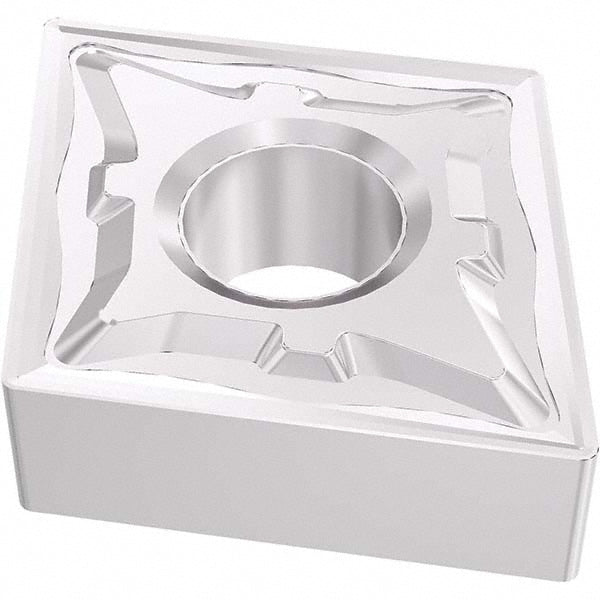

CNMG120412-M5 Carbide Insert, Grade TM2501, TiCN - Seco 03273907
MFR# 03273907ISO/ANSI# CNMG433-M5Series CNMG-M5
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03273907 is a CNMG120412-M5 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG433-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-M5
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03273907
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.4594
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
