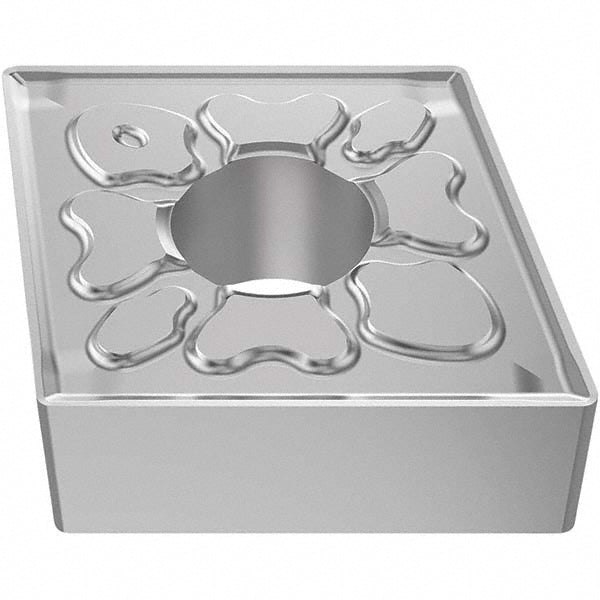

CNMG160608-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03273913

Seco

CNMG160608-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03273913

MFR# 03273913ISO/ANSI# CNMG160608Series CNMG-MF4

$27.45List $35.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTM1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03273913 is a CNMG160608-MF4 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeCNMG542
Ansi size code542
Chip breakerMF4
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG542-MF4
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608-MF4
Iso insert codeCNMG160608
Iso size code160608
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03273913
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.6024
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
