Seco

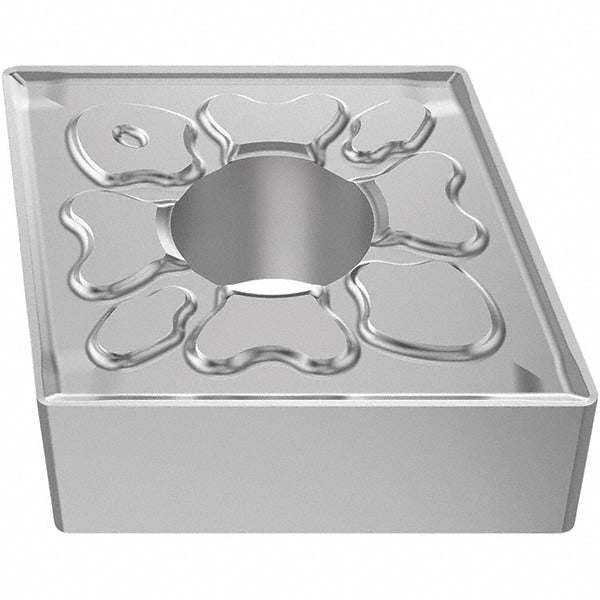

CNMG160608-MF4 Carbide Insert, Grade TM2501, TiCN - Seco 03273915
MFR# 03273915ISO/ANSI# CNMG542-MF4Series CNMG-MF4
$30.15List $38.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeTM2501
MaterialCarbide
CoatingTiCN
Description
The Seco 03273915 is a CNMG160608-MF4 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG542-MF4
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond 80
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608-MF4
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number03273915
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.6024
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
