CNMG160612-M5 Carbide Insert, Grade TM2501, TiCN - Seco 03273921

Seco

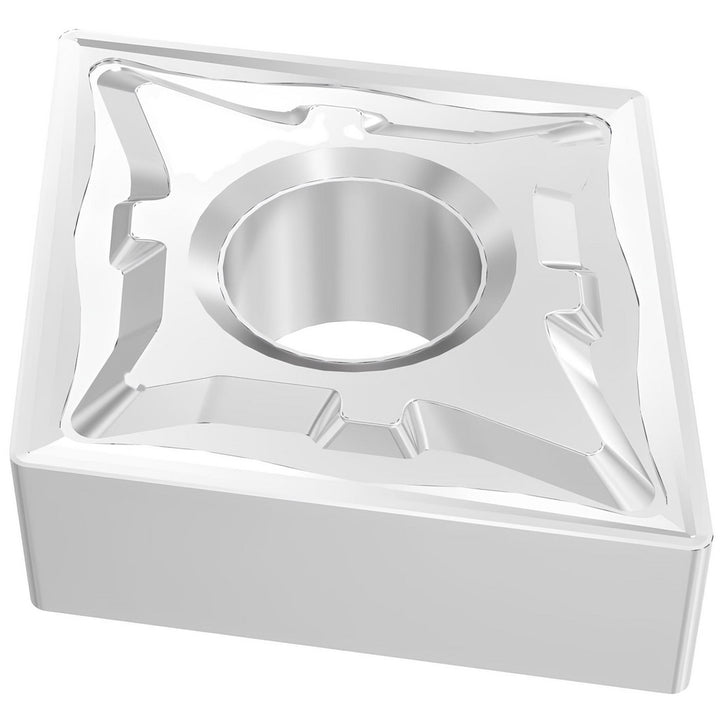

CNMG160612-M5 Carbide Insert, Grade TM2501, TiCN - Seco 03273921

MFR# 03273921ISO/ANSI# CNMG160612Series CNMG-M5

$30.15List $38.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTM2501
MaterialCarbide
CoatingTiCN

Description

The Seco 03273921 is a CNMG160612-M5 carbide indexable insert, grade TM2501, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeCNMG543
Ansi size code543
Chip breakerM5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543-M5
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612-M5
Iso insert codeCNMG160612
Iso size code160612
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number03273921
Manufacturer gradeTM2501
Material gradeM25; M30; M35
Maximum depth of cut0.5862
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
