Seco

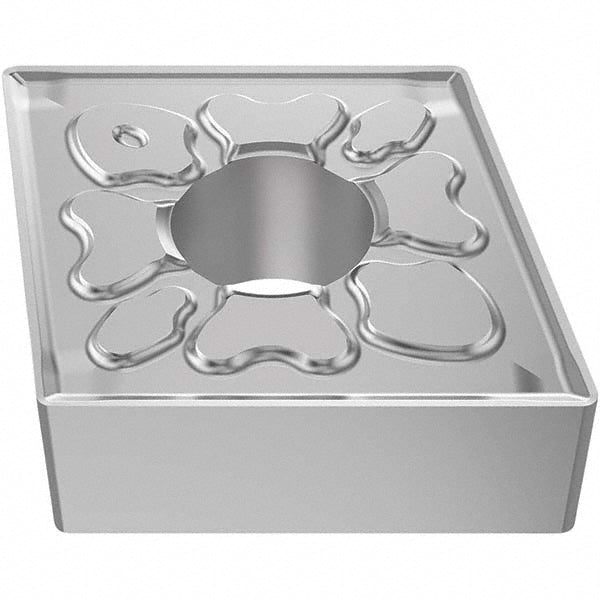

CNMG160612-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03273923
MFR# 03273923ISO/ANSI# CNMG543-MF4Series CNMG-MF4
$30.15List $38.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeTM1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03273923 is a CNMG160612-MF4 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG543-MF4
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612-MF4
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number03273923
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.5862
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
