Seco

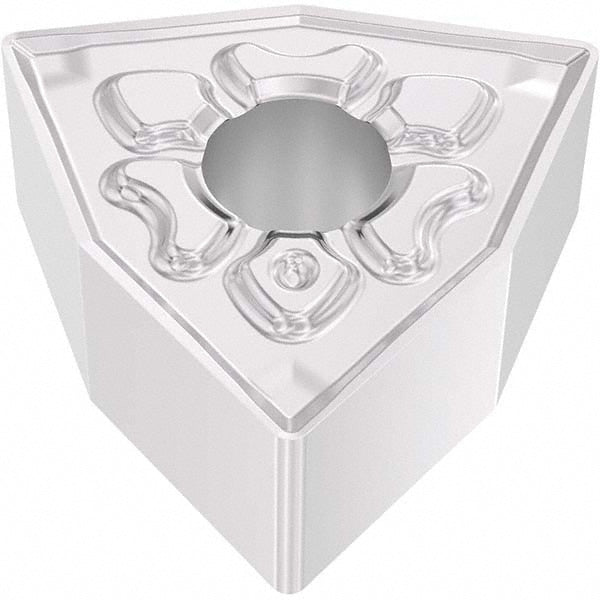

WNMG080408-MF4 Carbide Insert, Grade TM1501, TiCN - Seco 03273962
MFR# 03273962ISO/ANSI# WNMG432-MF4Series WNMG-MF4
$21.05List $27.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTM1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03273962 is a WNMG080408-MF4 carbide indexable insert, grade TM1501, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF4
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG432-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6842
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MF4
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number03273962
Manufacturer gradeTM1501
Material gradeM15; M20; M25
Maximum depth of cut0.3307
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel
RakeNegative
Rake angle30
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
